ECO Caps with head

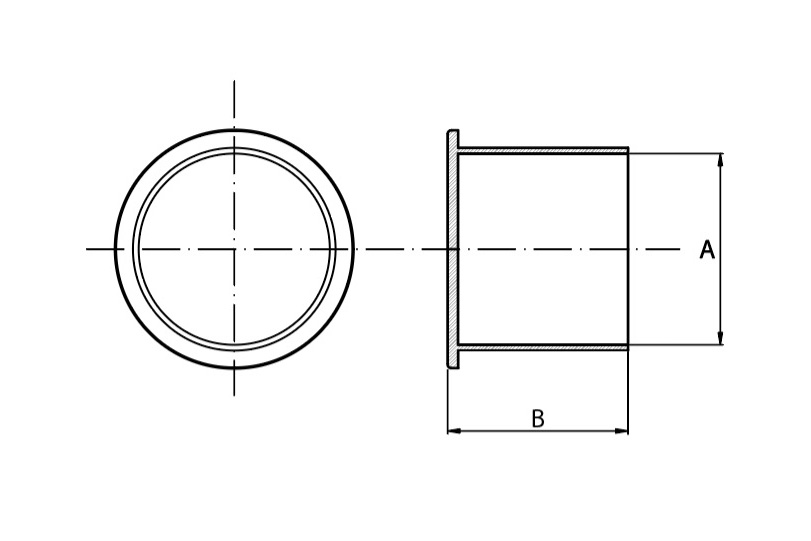

TECHNICAL DATA
DOWNLOAD
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy
| Codice | A | B |
|---|---|---|
| TCNG 1/8 ECO | G 1/8 | 14.8 |
| TCNG 1/4 ECO | G 1/4 | 14.8 |
| TCNG 3/8 ECO | G 3/8 | 11.5 |
| TCNG 1/2 ECO | G 1/2 | 20.0 |
| TCNG 3/4 ECO | G 3/4 | 19.5 |
| TCNG 1-1/2 ECO | G 1-1/2 | 26.5 |
IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf
| Codice | A | B |
|---|---|---|
| TCNU 7/16 ECO | U 7/16 | 15.3 |
| TCNU 1/2 ECO | U 1/2 | 14.8 |
| TCNU 9/16 ECO | U 9/16 | 15.0 |
| TCNU 11/16 ECO | U 11/16 | 13.6 |
| TCNU 3/4 ECO | U 3/4 | 19.0 |
| TCNU 13/16 ECO | U 13/16 | 16.6 |
| TCNU 7/8 ECO | U 7/8 | 17.5 |
| TCNU 1-1/16 ECO | U 1-1/16 | 19.5 |
| TCNU 1-3/16 ECO | U 1-3/16 | 19.7 |
| TCNU 1-5/16 ECO | U 1-5/16 | 19.5 |
| TCNU 1-7/16 ECO | U 1-7/16 | 19.5 |
| TCNU 1-5/8 ECO | U 1-5/8 | 23.0 |
| TCNU 1-5/8L ECO | U 1-5/8L | 35.5 |
| TCNU 1-11/16 ECO | U 1-11/16 | 20.0 |
| TCNU 1-7/8 ECO | U 1-7/8 | 26.5 |
| TCNU 2 ECO | U 2 | 27.0 |
IT:FILETTO METRICOEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny
| Codice | A | B |
|---|---|---|
| TCNM 05 ECO | M 5 | 13.8 |
| TCNM 07 ECO | M 7 | 10.0 |
| TCNM 17 ECO | M 17 | 13.7 |
| TCNM 18 ECO | M 18 | 23.2 |
| TCNM 22 ECO | M 22 | 17.7 |
| TCNM 38 ECO | M 38 | 21.0 |
| TCNM 44.5 ECO | M 44.5 | 14.2 |
| TCNM 73 ECO | M 73 | 30.0 |
