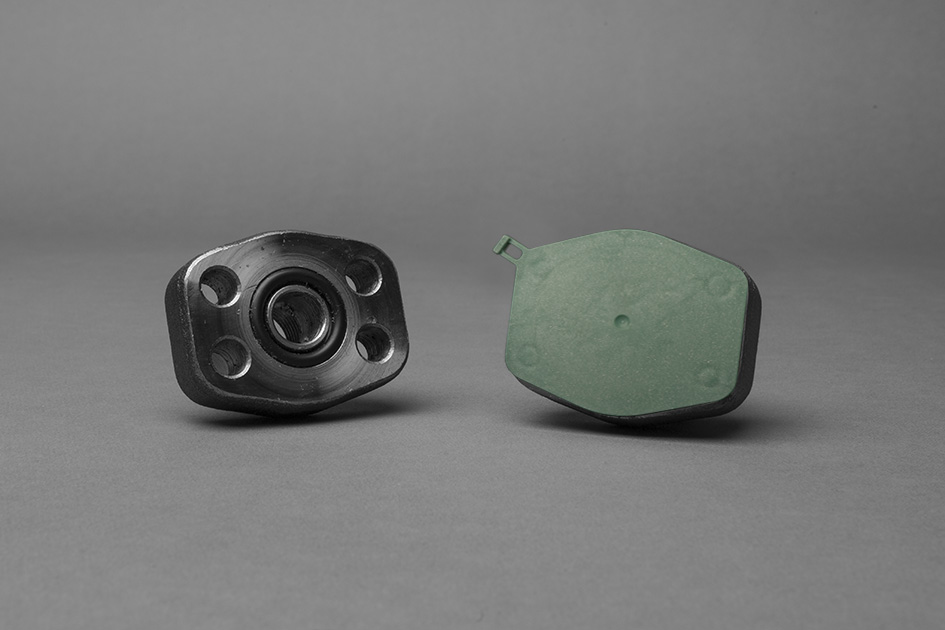

ECO SAE 3000 flanges
TECHNICAL DATA
DOWNLOAD
IT:FORI FILETTATIEN:THREADED HOLESFR:Trous filetésDE:GewindelöcherES:Agujeros roscadosCZ:Závitové otvoryPL:Otwory gwintowane
| Codice | A | B | C | D |
|---|---|---|---|---|
| TFF 3000 1/2 ECO | 17.5 | 38.0 | 9.6 | 7.2 |
| TFF 3000 3/4 ECO | 22.2 | 47.6 | 10.5 | 8.7 |
| TFF 3000 1 ECO | 26.2 | 52.4 | 10.5 | 8.7 |
| TFF 3000 1-1/4 ECO | 30.2 | 58.7 | 10.5 | 8.7 |
| TFF 3000 1-1/2 ECO | 35.7 | 70.0 | 11.5 | 10.7 |
| TFF 3000 2 ECO | 42.9 | 77.8 | 12.6 | 10.7 |
| TFF 3000 2-1/2 ECO | 50.3 | 88.3 | 10.6 | 10.5 |
IT:FORI NON FILETTATIEN:NO THREADED HOLESFR:Trous non filetésDE:Gewindelose LöcherES:Agujeros no roscadosCZ:Otvory bez závituPL:Otwory niegwintowane
| Codice | A | B | C | D |
|---|---|---|---|---|
| TFN 3000 1/2 ECO | 17.5 | 38.0 | 9.6 | 9.3 |
| TFN 3000 3/4 ECO | 22.2 | 47.6 | 10.5 | 11.3 |
| TFN 3000 1 ECO | 26.2 | 52.4 | 10.5 | 11.3 |
| TFN 3000 1-1/4 ECO | 30.2 | 58.7 | 10.5 | 12.8 |
| TFN 3000 1-1/2 ECO | 35.7 | 70.0 | 11.5 | 14.0 |
| TFN 3000 2 ECO | 42.9 | 77.8 | 12.5 | 13.7 |
