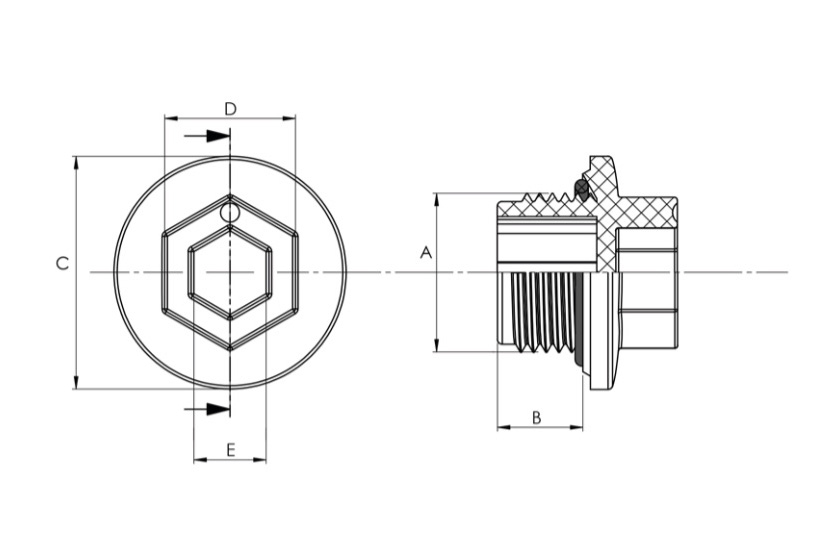

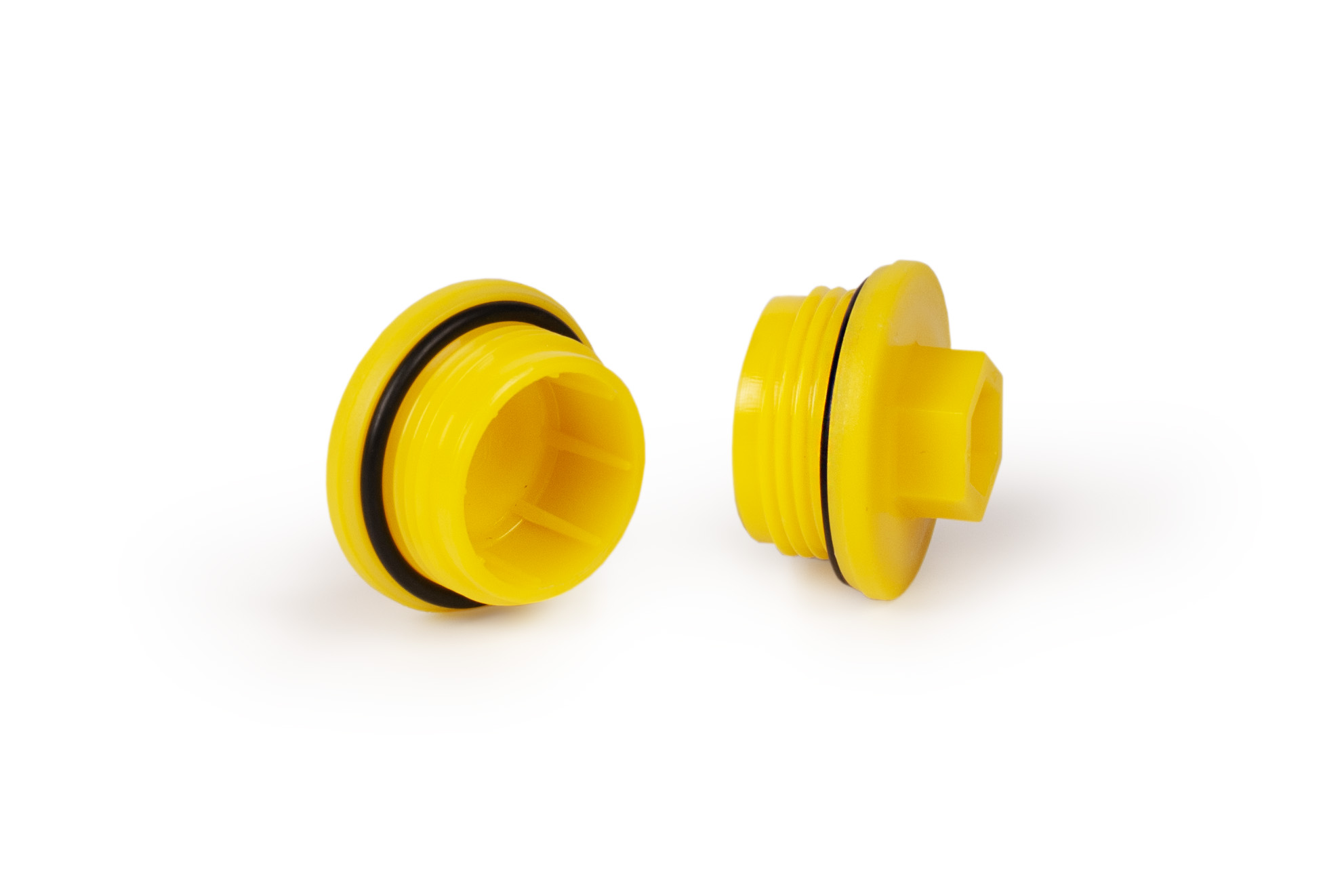

Threaded sealing type with O-RING plugs
TECHNICAL DATA
DOWNLOAD
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy
| Codice | A | B | C | D | E |
|---|---|---|---|---|---|
| TMEG 1/8 OR | G 1/8 | 7.8 | 16.0 | 14.0 | 8.0 |
| TMEG 1/4 OR | G 1/4 | 9.7 | 18.0 | 14.0 | 8.0 |
| TMEG 3/8 OR | G 3/8 | 7.8 | 22.5 | 14.0 | 8.0 |
| TMEG 1/2 OR | G 1/2 | 11.9 | 26.5 | 14.0 | 8.0 |
| TMEG 3/4 OR | G 3/4 | 10.5 | 32.5 | 19.0 | 10.0 |
| TMEG 1 OR | G 1 | 13.1 | 39.5 | 19.0 | 10.0 |
| TMEG 1-1/4 OR | G 1-1/4 | 15.0 | 49.5 | 24.0 | 14.0 |
| TMEG 1-1/2 OR | G 1-1/2 | 15.0 | 57.5 | 24.0 | 14.0 |
IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf
| Codice | A | B | C | D | E |
|---|---|---|---|---|---|
| TMEU 7/16 OR | U 7/16 | 8.0 | 17.5 | 14.0 | 8.0 |
| TMEU 9/16 OR | U 9/16 | 8.2 | 20.3 | 14.0 | 8.0 |
| TMEU 3/4 OR | U 3/4 | 7.6 | 26.0 | 14.0 | 8.0 |
| TMEU 7/8 OR | U 7/8 | 11.6 | 29.5 | 14.0 | 8.0 |
| TMEU 1-1/16 OR | U 1-1/16 | 10.5 | 33.0 | 19.0 | 10.0 |
| TMEU 1-5/16 OR | U 1-5/16 | 13.0 | 41.5 | 19.0 | 10.0 |
| TMEU 1-5/8 OR | U 1-5/8 | 15.0 | 51.0 | 24.0 | 14.0 |
| TMEU 1-7/8 OR | U 1-7/8 | 15.0 | 57.5 | 24.0 | 14.0 |
IT:FILETTO METRICOEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny
| Codice | A | B | C | D | E |
|---|---|---|---|---|---|
| TMEM 10 OR | M 10X1.5 | 7.8 | 16.0 | 14.0 | 8.0 |
| TMEM 12 OR | M 12X1.5 | 9.7 | 17.5 | 14.0 | 8.0 |
| TMEM 14 OR | M 14X1.5 | 8.2 | 19.5 | 14.0 | 8.0 |
| TMEM 16 OR | M 16X1.5 | 8.8 | 21.5 | 14.0 | 8.0 |
| TMEM 18 OR | M 18X1.5 | 7.6 | 23.5 | 14.0 | 8.0 |
| TMEM 20 OR | M 20X1.5 | 11.9 | 25.5 | 14.0 | 8.0 |
| TMEM 22 OR | M 22X1.5 | 11.6 | 27.5 | 14.0 | 8.0 |
| TMEM 26 OR | M 26X1.5 | 10.5 | 31.5 | 19.0 | 12.0 |
| TMEM 27 OR | M 27X2 | 11.0 | 32.5 | 19.0 | 12.0 |
| TMEM 33 OR | M 33X2 | 15.0 | 39.5 | 19.0 | 12.0 |
| TMEM 42 OR | M 42X2 | 15.0 | 49.5 | 19.0 | 14.0 |
