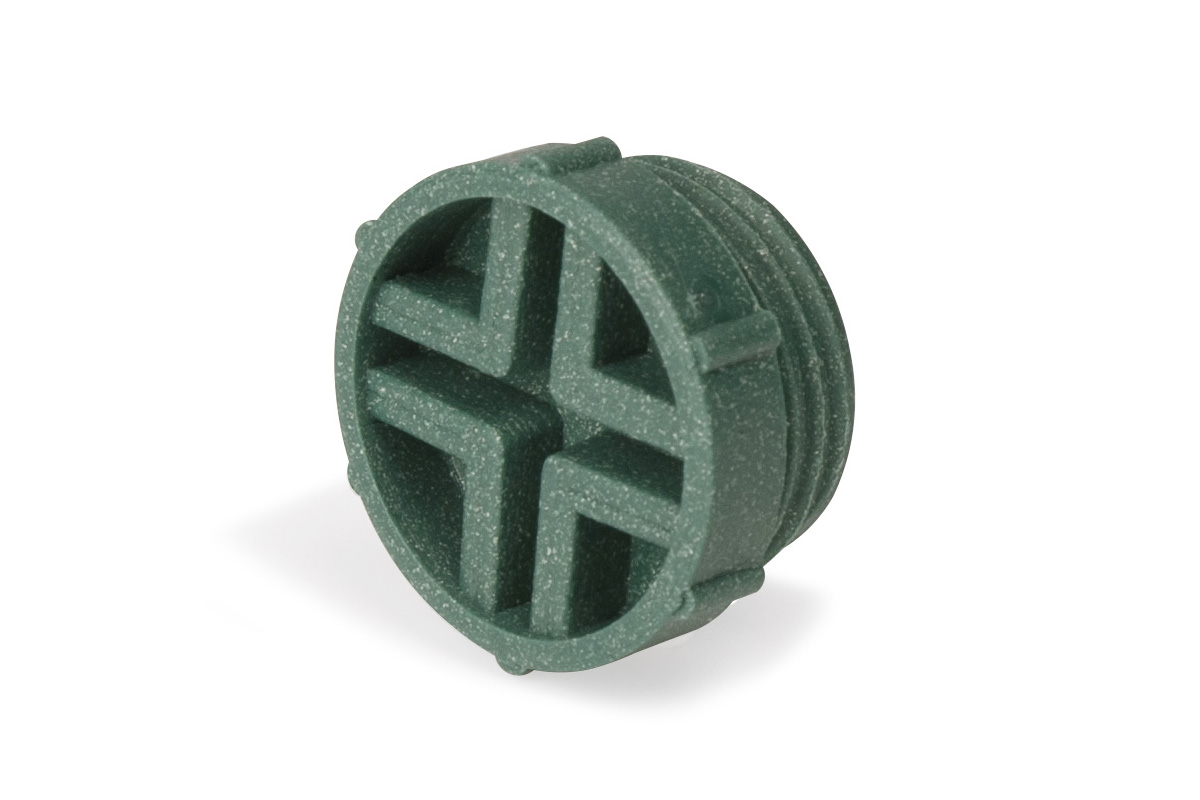

Macho ranurado ECO
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy
| Codice | A | B | C | D |
|---|---|---|---|---|
| TMCG 1/4 ECO | G 1/4 | 11.0 | 6.0 | 19.0 |
| TMCG 3/8 ECO | G 3/8 | 13.5 | 8.5 | 19.0 |
| TMCG 1/2 ECO | G 1/2 | 15.0 | 9.0 | 25.5 |
| TMCG 5/8 ECO | G 5/8 | 13.8 | 7.8 | 26.0 |
| TMCG 3/4 ECO | G 3/4 | 17.0 | 11.0 | 30.0 |
| TMCG 1 ECO | G 1 | 15.5 | 10.0 | 37.5 |
IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf
| Codice | A | B | C | D |
|---|---|---|---|---|
| TMCU 1/2 ECO | U 1/2 | 11.0 | 6.0 | 19.0 |
| TMCU 9/16 ECO | U 9/16 | 13.5 | 8.5 | 20.5 |
| TMCU 11/16 ECO | U 11/16 | 11.0 | 7.2 | 20.5 |
| TMCU 3/4 ECO | U 3/4 | 12.8 | 7.8 | 22.5 |
| TMCU 13/16 ECO | U 13/16 | 12.8 | 9.0 | 25.5 |
| TMCU 7/8 ECO | U 7/8 | 13.7 | 7.8 | 26.3 |
| TMCU 1 ECO | U 1 | 14.0 | 11.0 | 30.5 |
| TMCU 1-1/16 ECO | U 1-1/16 | 16.5 | 10.6 | 31.0 |
| TMCU 1-3/16 ECO | U 1-3/16 | 18.0 | 12.0 | 36.6 |
| TMCU 1-5/16 ECO | U 1-5/16 | 15.5 | 10.0 | 37.5 |
| TMCU 1-7/16 ECO | U 1-7/16 | 18.0 | 11.8 | 41.3 |
| TMCU 1-11/16 ECO | U 1-11/16 | 17.6 | 11.6 | 48.5 |
IT:FILETTO METRICOEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny
| Codice | A | B | C | D |
|---|---|---|---|---|
| TMCM 12 ECO | M 12X1.5 | 11.0 | 6.0 | 19.0 |
| TMCM 14 ECO | M 14X1.5 | 13.5 | 8.5 | 19.0 |
| TMCM 16 ECO | M 16X1.5 | 13.5 | 8.5 | 19.0 |
| TMCM 18 ECO | M 18X1.5 | 13.6 | 8.6 | 22.5 |
| TMCM 20 ECO | M 20X1.5 | 15.0 | 8.5 | 25.5 |
| TMCM 22 ECO | M 22X1.5 | 13.8 | 7.8 | 26.6 |
| TMCM 24 ECO | M 24X1.5 | 15.0 | 10.0 | 28.5 |
| TMCM 26 ECO | M 26X1.5 | 16.5 | 10.6 | 31.0 |
| TMCM 30 ECO | M 30X1.5 | 18.0 | 12.0 | 36.6 |
| TMCM 36 ECO | M 36X2 | 18.0 | 12.0 | 41.5 |
